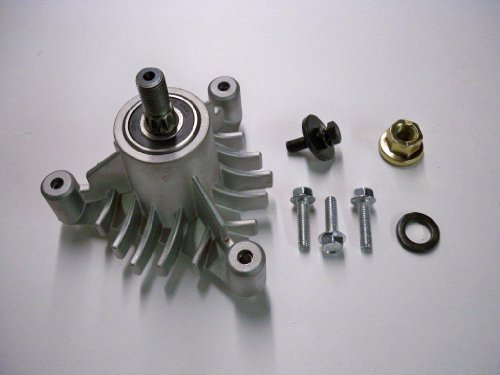

Spindle Compatible With 143651, 532143651, Tapped Mounting Holes, Hardware Included. Complete Assy Includes 137152 Housing, 137553 Shaft W/Bearings, And Hardware.
$39.99
Description
Complete Spindle Assembly Compatible with 143651 AYP,550507 (maker of Craftsman, Poulan, Husqvarna, YardPro, WeedEater, Wizard & more) used this spindle on 3 blade decks 44″ (rare, 1993-1994 only), 46, and 50″ decks, 1993 to 2001
- Includes hardware, mounting holes tapped. Includes 137152 Housing, 137553 Shaft (with bearings) and hardware
- Hardware includes 3 mounting bolts, Pulley lock nut (137266), Blade Bolt 850857 (with washers), Spacer (129963), Pulley not included
- The top of the shaft is splined for spline type pulleys (pulley not included) and the bottom of the shaft has the AYP 5 point star pattern
Very important when installing the pulley to put the spacer under the pulley (between the pulley and top bearing). If installed without a spacer or with the spacer on top of the pulley damage will occur to the shaft and pulley.
Out of stock
